Answer
Jun 25, 2025 - 08:43 AM

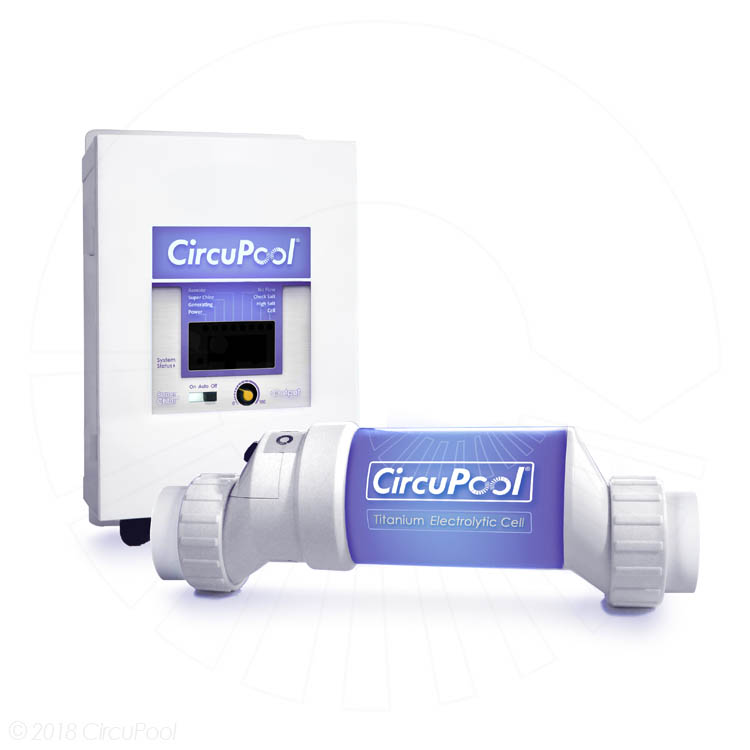

The black, System Status button on a CircuPool Universal Series Salt Chlorinator, when pressed successively, will display the following information:
1. Pool Temperature (xx degrees Fahrenheit or Celsius) 2. Cell Voltage (often 21.0 to 27.0 volts when chlorine is being generated, otherwise 16-31V. Voltage slowly builds when generation begins. If Voltage stays between 10-13V, this typically indicates the unit is configured to accept 240V but is only receiving 120V.) 3. Cell Current (often 2.50 to 7.80 amps when chlorine is being generated, otherwise 0 amps during normal rest cycles – see “Duty Cycle” below for more information. May show as positive(+) or Negative (-)) 4. Selected Chlorine Output percentage level ("0p" to "100p" depending on dial position or input from remote pool automation controller) 5. Real-Time Salinity reading ( xxxx PPM or x.x grams/Liter.) 6. System ID 7. Software revision level (does not need updated) 8. Cell Version (make note of this before contacting us if your salinity readings are badly mismatched with outside testing)
If your Check Cell light begins flashing as a reminder to clean your salt cell, press and hold this button in for 10 seconds when you clean the cell in order to reset the Check Cell reminder (and turn off the flashing light)
1. Pool Temperature (xx degrees Fahrenheit or Celsius) 2. Cell Voltage (often 21.0 to 27.0 volts when chlorine is being generated, otherwise 16-31V. Voltage slowly builds when generation begins. If Voltage stays between 10-13V, this typically indicates the unit is configured to accept 240V but is only receiving 120V.) 3. Cell Current (often 2.50 to 7.80 amps when chlorine is being generated, otherwise 0 amps during normal rest cycles – see “Duty Cycle” below for more information. May show as positive(+) or Negative (-)) 4. Selected Chlorine Output percentage level ("0p" to "100p" depending on dial position or input from remote pool automation controller) 5. Real-Time Salinity reading ( xxxx PPM or x.x grams/Liter.) 6. System ID 7. Software revision level (does not need updated) 8. Cell Version (make note of this before contacting us if your salinity readings are badly mismatched with outside testing)
If your Check Cell light begins flashing as a reminder to clean your salt cell, press and hold this button in for 10 seconds when you clean the cell in order to reset the Check Cell reminder (and turn off the flashing light)
