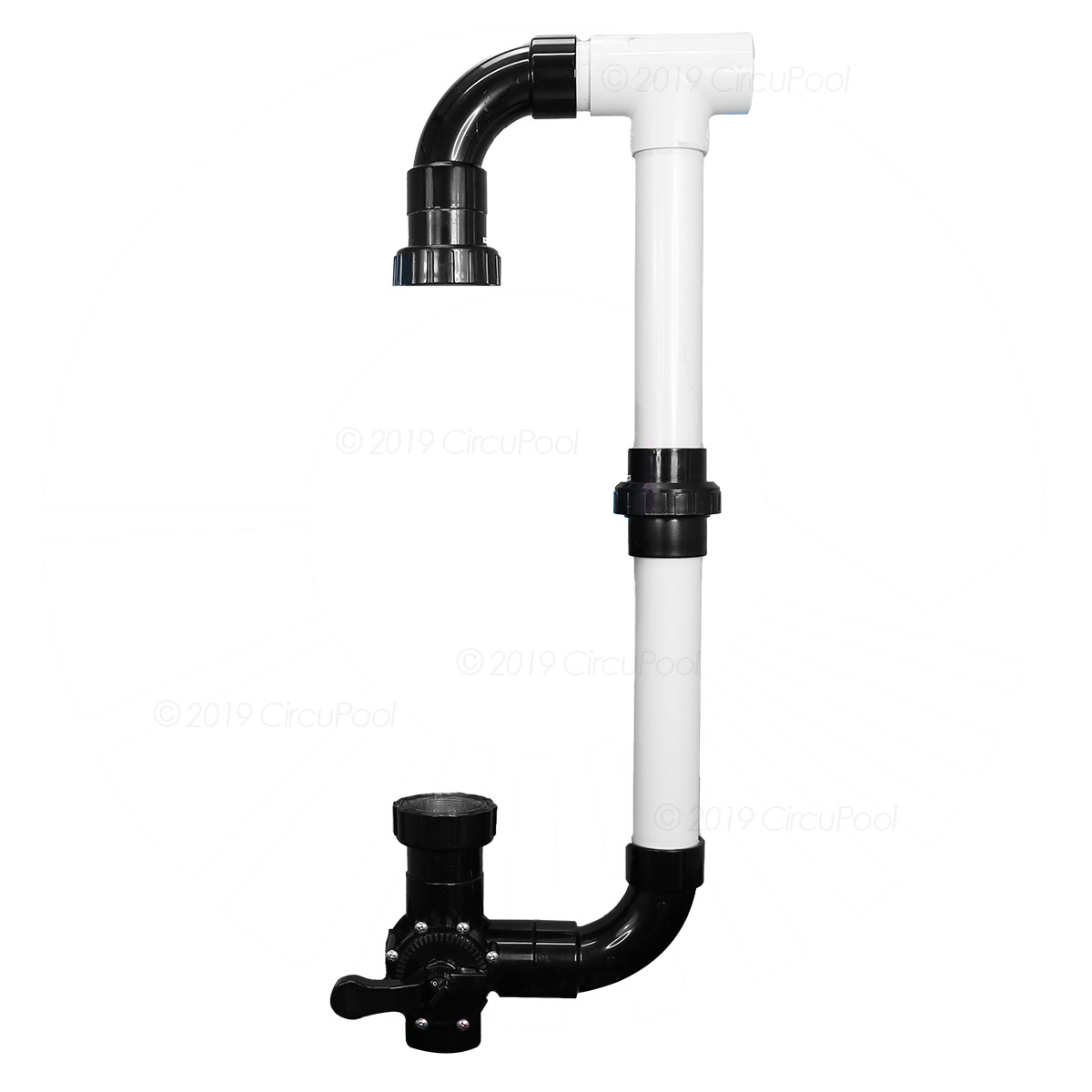

What position is the valve for bypass. Didn't look when installing and have de in cyclone Bypass Valve Assembly Kit for CircuPool® TJ16 Pre-Filter (For Use with DE Filters Only) Filters

My DA didn't check or mark bypass open or closed. When trying multiple positions still had de going to cyclone. Why isn't a check valve installed to prevent back flow

Status: Open Jul 01, 2025 - 12:39 PM

Do you have the same question? Follow this Question

1answer

Answer

Jul 01, 2025 - 12:39 PM

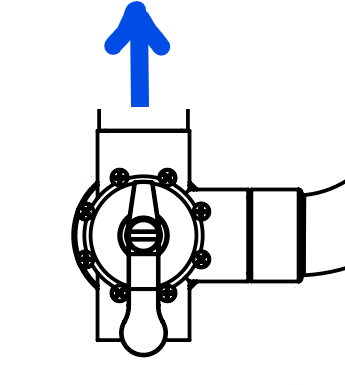

As you can see from the attached image, the water flows out of the valve in the direction that the handle "points." Consequently, to bypass the TJ-16, you will want the turn the handle perpendicular to the inlet pipe with the pointer in the direction of the bypass loop.
Check valves have not seemed necessary with DE finding its way in through a (partially) open valve. With an understanding of the correct valve orientation before you add DE, you shouldn't have a problem in the future.
