Answer
Aug 20, 2025 - 12:46 PM

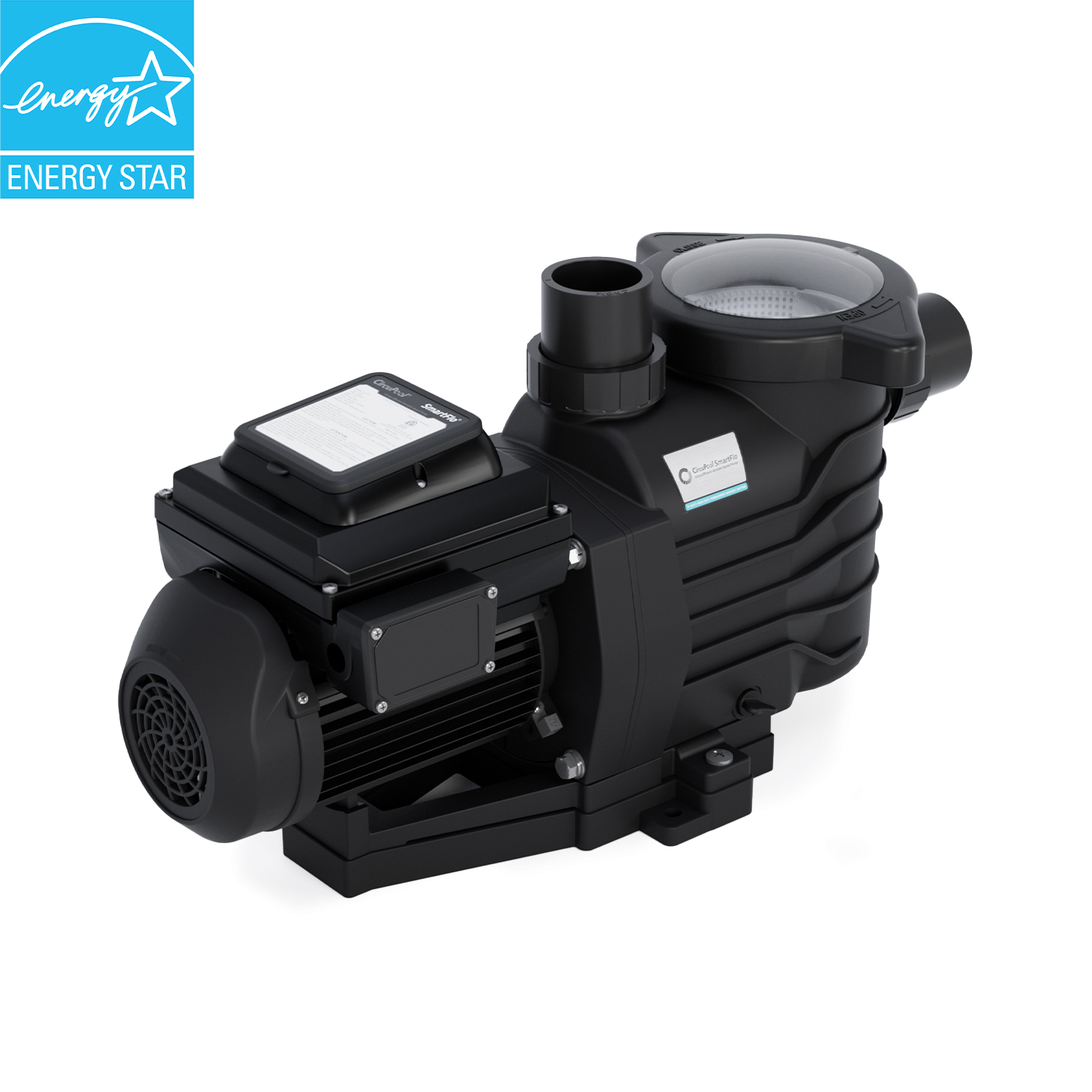

In a word, yes, CircuPool SmartFlo® Variable Speed Pool Pumps are usable with any saltwater system. However, if you are inquiring about using it with an automation system then that is a more involved answer.
The CircuPool SmartFlo Automation adapter option allows for an external controller to send signals to the pump which can operate under one of two protocols:
1) This control scheme allows an external controller to activate 3 of the pump’s preset speeds. In this configuration the only thing that needs to be set on the pump are the speeds you want it to run in each schedule. The time and duration will be controlled by the external controller.
or
2) This will allow for an external controller to signal the pump to begin it’s internally set programming. In this configuration the start time and end time is set on the external controller, and then the duration and speed of each schedule needs to be set on the pump. Once the signal comes from the automation to begin, the pump will cycle through all the schedules continuously according to the time until a signal is sent from the automation panel to end operation.
The CircuPool SmartFlo Automation adapter option allows for an external controller to send signals to the pump which can operate under one of two protocols:
1) This control scheme allows an external controller to activate 3 of the pump’s preset speeds. In this configuration the only thing that needs to be set on the pump are the speeds you want it to run in each schedule. The time and duration will be controlled by the external controller.
or
2) This will allow for an external controller to signal the pump to begin it’s internally set programming. In this configuration the start time and end time is set on the external controller, and then the duration and speed of each schedule needs to be set on the pump. Once the signal comes from the automation to begin, the pump will cycle through all the schedules continuously according to the time until a signal is sent from the automation panel to end operation.
